Package: gtk

Class gtk:assistant

Superclasses

gtk:window, gtk:bin, gtk:container, gtk:widget, gtk:buildable, gobject:object, common-lisp:standard-object, common-lisp:t

Documented Subclasses

None

Direct Slots

use-header-bar

The use-header-bar property of type :int (Read / Write / Construct)
True if the assistant uses a header bar for action buttons instead of the action area. For technical reasons, this property is declared as an integer property, use the value 1 for true or -1 for false.
Allowed values: [-1, 1]
Default value: -1

Details

The gtk:assistant widget is used to represent a generally complex operation splitted in several steps, guiding the user through its pages and controlling the page flow to collect the necessary data.

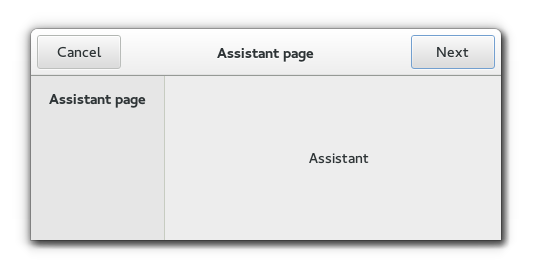

Figure: GtkAssistant

The design of the gtk:assistant widget is that it controls what buttons to show and to make sensitive, based on what it knows about the page sequence and the type of each page, in addition to state information like the page completion and committed status.

If you have a case that does not quite fit in an assistants way of handling buttons, you can use the :custom page type of the gtk:assistant-page-type enumeration and handle buttons yourself.

GtkAssistant as GtkBuildable

The gtk:assistant implementation of the gtk:buildable interface exposes the action area as internal child with the name "action_area". To add pages to an assistant in a gtk:builder object, simply add it as a <child> to the gtk:assistant widget and set its child properties as necessary.

CSS nodes

The gtk:assistant implementation has a single CSS node with the name assistant.

Child Property Details

complete

The complete child property of type :boolean (Read / Write)
Setting to true marks a page as complete, that is, all the required fields are filled out. GTK uses this information to control the sensitivity of the navigation buttons.
Default value: false

has-padding

The has-padding child property of type :boolean (Read / Write)
Whether the assistant adds padding around the page.
Default value: true

header-image

The header-image child property of type gdk-pixbuf:pixbuf (Read / Write)
The image used to be displayed in the page header.
Warning: The header-image child property has been deprecated since version 3.2 and should not be used in newly written code. Since GTK 3.2, a header is no longer shown. Add your header decoration to the page content instead.

page-type

The page-type child property of type gtk:assistant-page-type (Read / Write)
The type of the assistant page.
Default value: :content

title

The title child property of type :string (Read / Write)
The title of the page.
Default value: nil

Style Property Details

content-padding

The content-padding style property of type :int (Read)
The number of pixels around the content pages.
Warning: The content-padding style property has been deprecated since version 3.20 and should not be used in newly written code. This style property is ignored.
Allowed values: >= 0
Default value: 1

header-padding

The header-padding style property of type :int (Read)
The number of pixels around the header.
Warning: The content-padding has been deprecated since version 3.20 and should not be used in newly written code. This style property is ignored.
Allowed values: >= 0
Default value: 6

Signal Details

The "apply" signal

lambda (assistant)    :run-last

assistant: The gtk:assistant widget that received the signal.

The signal is emitted when the Apply button is clicked. The default behavior of the assistant is to switch to the page after the current page, unless the current page is the last one. A handler for the "apply" signal should carry out the actions for which the wizard has collected data. If the action takes a long time to complete, you might consider putting a :progress page after the :confirm page and handle this operation within the "prepare" signal of the progress page.

The "cancel" signal

lambda (assistant)    :run-last

assistant: The gtk:assistant widget that received the signal.

The signal is emitted when the Cancel button is clicked.

The "close" signal

lambda (assistant)    :run-last

assistant: The gtk:assistant widget that received the signal.

The signal is emitted either when the Close button of a summary page is clicked, or when the Apply button in the last page in the flow is clicked, which is the :confirm page.

The "escape" signal

lambda (assistant)    :action

assistant: The gtk:assistant widget that received the signal.

No documentation.

The "prepare" signal

lambda (assistant page)    :run-last

assistant: The gtk:assistant widget that received the signal.
page: The gtk:widget widget for the current page.

The signal is emitted when a new page is set as the assistants current page, before making the new page visible. A handler for this signal can do any preparations which are necessary before showing the page.
